GUGAO GM Series large-platform Gantry Machining Centers can be classified into 2 categories of roller-guide machines and slide-guide machines with the power to handle big jobs such as rough or fine finish of large hard ferrous and non-ferrous metal parts, as well as the speed to cut small parts of plastic and other light materials by the thousand.
4500/3000/1000mm
4000*2200mm
20000kg
Share:
1. Machine tool performance:

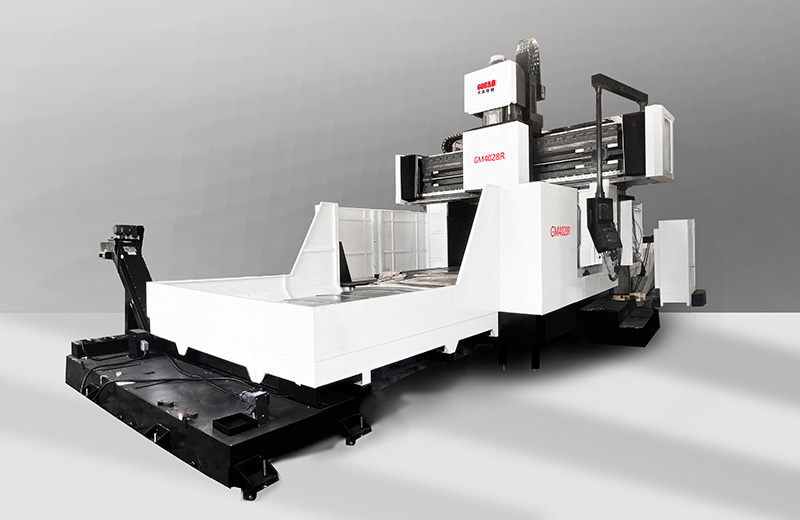

GM4028R is a heavy-duty cutting machine tool, which mainly processes large and medium-sized castings and welded parts. It is suitable for parts processing in the aerospace, energy, engineering machinery, machine tools, vehicles and other industries. It has the characteristics of high precision, high efficiency, flexibility and environmental protection. Its performance indicators and accuracy indicators meet the relevant national standards.
2. Overall machine structure characteristics:
The worktable is movable, the gantry is fixed, the Z axis is a fully enclosed square slide, and the X and Y axes use heavy-duty linear rails.
3. Main transmission structure characteristics:
The main motor is arranged at the top of the slide, and an imported reduction gearbox is selected. The reduction gearbox and the spindle are equipped with an oil cooling system.
4. Feed structure characteristics:
The X, Y and Z axes are all driven by high-precision ball screws and equipped with imported reduction gearboxes. The Z axis is equipped with a nitrogen balance device.
5. Operating system:
Two high-performance CNC systems are available: FANUC 0i-MF(1) and SIEMENS 828D.
6. Optional configuration:
Tool magazine, right-angle milling head, extended milling head, extended right-angle milling head, universal milling head, etc.
7. Manufacturing specifications:
The quality of all machine tool parts and components processed and assembled shall comply with the product drawings and relevant technical requirements, and its safety standards shall comply with the relevant provisions of GB15760-2004 ""General Technical Conditions for Safety Protection of Metal Cutting Machine Tools"", and its accuracy standards shall comply with the relevant provisions of GB/T17421-2000 ""General Rules for Machine Tool Inspection"" and GB/T19362.1-2003 ""Inspection Conditions for Gantry Milling Machines"".
| Item/Content | Parameter |
| Triaxial travel | 4500/3000/1000 (mm) |
| Distance from spindle end face to center of table | 250-1250 (mm) |
| Distance between two columns | 2780 (mm) |
| Table area | 4000*2200 (mm) |
| Maximum bearing capacity | 20000 (kg) |
| T-slot (slot number * slot width * spacing) | 13*28*160 (mm) |
| Maximum spindle speed | 4500 (rpm) |
| Spindle diameter/inner taper | ⌀190/BT50 |
| Spindle motor power | 22/26 (kW) |
| Three axis fast moving speed | 12/12/12 (m/min) |
| Triaxial feed speed (X/Y/Z) | 6/6/6 (m/min) |
| Cutting feed speed range | None |
| Tool storage capacity | None |
| Maximum tool diameter/length/weight | None |
| Maximum tool diameter (full tool/adjacent empty tool) | None |
| Tool exchange time | None |
| Positioning accuracy (X/Y/Z) | 0.025/0.02/0.016 (mm) |
| Repeated positioning accuracy (X/Y/Z) | 0.016/0.014/0.010 (mm) |
| Air source/pressure | 500L/min 6-8bar |
| Linear rolling guide Specifications (X/Y/Z) | Roller 55/55 (mm) |
| Ball screw Specifications (X/Y/Z) | 80/63/50 (mm) |
| Total electrical capacity | 65 (KVA) |
| Tank volume | 530 (L) |
| Machine profile dimensions | 12500*7400*5700 (mm) |
| Machine weight | 45000 (kg) |
| Main configuration of machine tool | 1.FANUC 0i MF（1 pack） CNC 1 2.Hand held operation unit 1 3.Pneumatic system 1 4.Air gun 1 5.Automatic lubrication system 1 6.Oil-water separation system 1 7.Spindle oil cooling system 1 8.Workpiece cooling system 1 9.Chain plate chip conveyor and chip collection trolley 1 10.Imported reduction box 1 11.Hydraulic station 1 12.Spindle external positioning system 1 13.Three-axis built-in encoder feedback system 3 14.Beam safety guardrail and escalator 1 15.Beam guide rail protection cover 2 16.Bed guide rail protection cover 2 17.Bed guide rail protection cover 1 18.Lighting device 1 19.Electric cabinet air conditioner 1 20.Relevant accessories 1 21.Set of standard technical documents 1 22.Basic installation kit 1 |
| Random attachment | 1.CF card(2G)，CF card cover,card reader General 1 set 2.toolbox Bomei 1 pcs 3.Phillips screwdriver 6×150 1 pcs 4.Slotted screwdriver 6×150 1 pcs 5.Allen wrench 1.5-10MM 1 set |
| Machine tool main parts brand | 1.CNC System FANUC JAPAN 2.Spindle / Cell/KENTURN TAIWAN 3.Ball Screw THK/HIWIN / JAPAN/TAIWAN 4.Linear Guide THK/HIWIN / JAPAN/TAIWAN 5.Screw Bearing NSK/NACHI JAPAN 6.Lubricating system BAOTN CHINA 7.Spindle reduction box ZF/BF / GERMANY/ITALY 8.Feed shaft reduction box / Neugart/ALPHA Germany 9.Spindle oil cooler / QUANG/TONGFEI CHINA 10.Electrical cabinet air conditioner QUANG CHINA 11.Main pneumatic components SMC/ SMC/AIRTAC / JAPAN/TAIWAN 12.Main electrical components / Schneider/Omron / FRANCE/JAPAN Note: The manufacturer reserves the right to replace products with equivalent brands |
| Equipment customer security adjustment preparation table | 1.Foundation confirmation The machine tool weighs about 35T, see the foundation diagra Recommended quick-drying cement for secondary pouring of anchor bolts: high strength non-shrinkage grouting material 2.Preparing the incoming power cable Cable YJV 4*25mm² 3.Preparing for compressed air access Air source filtration precision 100μm Air tube outer diameter 10mm 4.Equipment oil.See "Recommended Oils and Grease Table" for details. 5.Transportation status confirmation 01.Confirm the transportation method according to the factory and surrounding road conditions 02.Meet the net transportation size of the largest component of the machine tool 03.Confirm the lifting method according to the actual height of the factory building 6.Preparation for installing spreader Steel wire rope, safe load-bearing of more than 37T |
| Keep under warranty | The warranty period of the machine tool is 12 months from the date of shipment of the equipment. During the warranty period, if machine tool failure occurs due to product quality problems, we will be responsible for free remote technical maintenance support. The following cases are within the warranty period, but are not applicable and the user must pay all repair costs: When the machine tool is damaged due to earthquake, typhoon, flood or other disasters beyond human control. When the product is faulty, rusty or damaged due to improper operation and maintenance by the buyer. After the warranty period, the seller is responsible for ensuring the paid supply of accessories and providing maintenance technical consultation and paid maintenance. The seller charges the cost of replacing faulty parts at a preferential price and provides spare parts for the parts. |
| Working conditions of CNC machine tools | Equipment use environment requirements Maintaining a constant level of ambient temperature is an essential factor for precision machining. 1. The available ambient temperature requires 10℃～40℃. When the ambient temperature is 20℃, the humidity should be 40～75%. In order to keep the static accuracy of the machine tool within the specified range, the optimal ambient temperature requires 15℃～25℃, and the temperature difference shall not exceed ±2℃/24h. 2. Power supply voltage: 3-phase, 380V, voltage fluctuation within ±10%, power supply frequency: 50HZ. 3. If the voltage in the use area is unstable, the machine tool should be equipped with a stabilized power supply to ensure the normal operation of the machine tool. 4. The machine tool should have reliable grounding: the grounding wire is a copper wire, the wire diameter should not be less than 10mm², and the grounding resistance is less than 4 ohms. 5. In order to ensure the normal working performance of the equipment, if the compressed air of the air source does not meet the air source requirements, a set of air source purification device (dehumidification, degreasing, filtration) should be added before the machine tool intake. 6. Keep the equipment away from direct sunlight, vibration sources, heat sources, high-frequency generators, electric welders, etc. to avoid machine production failures or loss of machine accuracy. |
