GUGAO HM Series Horizontal Machining Centers are the most rigid, powerful and best-value machine tools in the industry recommended especially for either high-volume production and unattended operation or really huge work cubes and heavy weight capacity needed such as complex machining of box parts, wind power, aerospace and other big jobs, with indexing worktable and automatic pallet changer.
1000/850/900mm
800*800mm
2000kg
Share:

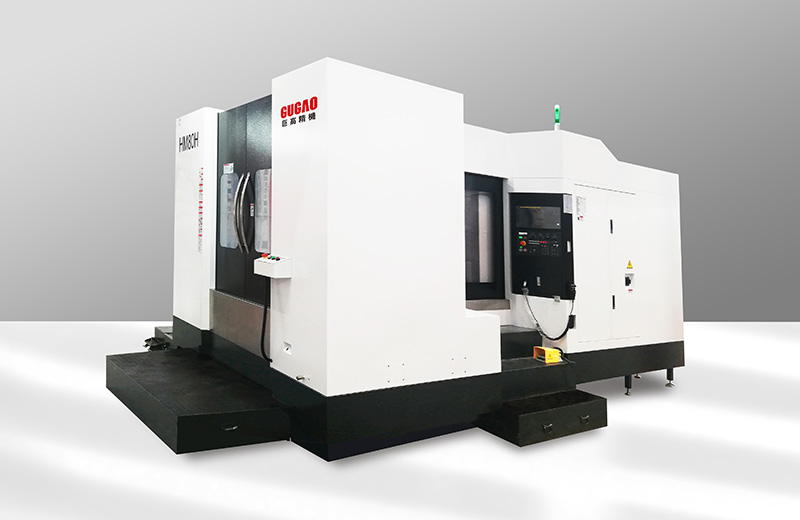

The HM80H horizontal machining center is suitable for complex processing of box-type parts. The tool can be automatically exchanged during the processing process. It can be clamped at one time to perform milling, drilling, reaming, boring, reaming, tapping, end face processing, boring step holes and other processes on four faces. Modern machine tools and control concepts, compact structural design, ensure high efficiency and high precision processing requirements for single or small and medium batch products.
Whole machine: The main structure of the machine tool is an inverted T-shaped, dynamic column structure with good rigidity. The beautiful shape fully reflects the engineering concept of man-machine integration. It is a high-performance, high-efficiency and high-speed high-end CNC machine tool. It is easy to use, operate and maintain.
Base: The advanced finite element analysis software is used to reasonably optimize the layout of the ribs to ensure its strength and rigidity, so that the performance indicators of each component are optimized and the rigidity is durable.
Column: The double-column closed frame structure is adopted, and higher longitudinal and transverse annular ribs are set in the cavity, so that the column has higher torsional and bending rigidity.
Spindle box: The wide-range AC servo spindle motor can achieve stepless speed regulation of the spindle.
Tool magazine: The tool magazine manipulator adopts a complete set of products from professional supporting manufacturers, with reliable quality and stable performance, which further improves the working reliability of the whole machine.
Drive: Advanced large-inertia feed servo motor is selected to realize three-axis feed drive, and high-rigidity ball screw pair is adopted to fundamentally solve the processing error caused by thermal deformation and transmission clearance of the workpiece during processing, so as to achieve the purpose of time saving and high precision.
Workbench: The single-station indexing rotary table is driven by a large-inertia feed servo motor, and the position accuracy is positioned by a high-precision rat gear disk, which is high-precision, accurate and reliable.
System configuration: Equipped with a high-performance FANUC 0i-MF CNC system, it can guarantee the CNC processing functions and auxiliary functions required by users.
The quality of finished products of all machine tool parts and components is in line with the product drawings and relevant technical requirements. Its safety standards comply with the relevant provisions of GB15760-2004 ""General Technical Conditions for Safety Protection of Metal Cutting Machine Tools"", and its accuracy standards comply with the relevant provisions of GB/T17421-2000 ""General Rules for Machine Tool Inspection"" and JB/T8772-1998 ""Inspection Conditions for Precision Machining Centers"".
| Item/Content | Parameter |
| Three axis travel | 1000/850/900 (mm) |
| Distance from spindle end face to worktable Center（Z Direction） | 200-1100 (mm) |
| Distance from spindle center to worktable (Y direction) | 80-930 (mm) |
| Worktable Size(L*W) | 800*800 (mm) |
| Maximum load-bearing capacity | 2000 (Kg) |
| Minimum indexing angle | 1°*360 (mm) |
| Maximum rotation diameter of workpiece | φ1200 |
| T-shaped slot | 5*20*125 |
| Max spindle speed | 6000 (rpm) |
| Spindle diameter Spindle bore taper | ⌀190/BT50 |
| Motor spec&power | βiIp30，15/18.5 (Kw) |
| Spindle Torque | 143/236 (N.m) |
| Three axis fast moving speed | 24/24/24 (m/min) |
| Three axis feed speed | 10/10/10 (m/min) |
| Magazine capacity | 24(T) |
| Max tool diameter/length/weight | ⌀110mm/350mm/15kg |
| Maximum tool diameter (full tool/adjacent empty tool) | φ110/φ200 |
| Positioning accuracy | 0.012 (mm) |
| repositioning accuracy | 0.008 (mm) |
| Rotary table positioning accuracy | ±5 |
| Repeat positioning accuracy of rotary table | ±1.5 |
| Linear guide rail specifications (X/Y/Z) | 55/55/65 Roller(mm) |
| Ball screw specifications (X/Y/Z) | 50/50/50(mm) |
| Servo motor specifications (X/Y/Z) | 36/36/36 (N.m) |
| Air source/pressure | 280L/min 6-8bar |
| Total electrical capacity | 45(KVA) |
| Machine size (X×Y×Z) | 5300*4200*3480 (mm) |
| estimated weight | 16500 (Kg) |
| Main configuration of machine tool | 1.FANUC 0i MF（5 pack）CNC 1 2.Hand held operation unit 1 3.Disc-type tool magazine 1 24T 4.Automatic lubrication system 1 5.Spindle air blowing device 1 6.Air curtain protection 1 7.Cleaning Air Gun 1 8.Relevant accessories 1 9. Set of standard technical documents 1 |
| Relevant accessories | 1.High pressure air gun.H-606-1(including tube 8*5-4m, connector).1.set 2.CF card(2G)，CF card cover，card reader General 1 set 3.toolbox Bomei 1 pcs 4.Phillips screwdriver 6*150 1 pcs 5.Slotted screwdriver 6*150 1 pcs 6.Allen wrench.1.5-10MM 1 set |
| Brands of the main parts | 1.CNC System.FANUC JAPAN 2.Indexing rotary table GANRO/HENGWANG TAIWAN 3.Tool Magazine OKADA/DES/POJU TAIWAN 4.Spindle VOLIS TAIWAN 5.Ball Screw HIWIN/PMI TAIWAN 6.Linear Guide HIWIN/PMI TAIWAN 7.Screw Bearing.NSK/FAG JAPAN/GERMANY 8.Lubricating oil pump BAOTN CHINA 9.Air Conditioner Rucol CHINA 10.Hydraulic Station Seven-ocean CHINA 11.Main pneumatic components SMC/AIRTAC JAPAN/TAIWAN 12.Main electrical components Schneider/Omron FRANCE/JAPAN Note: The manufacturer reserves the right to replace products with equivalent brands |
| Equipment Customer Installation Preparation Form | 1.Foundation confirmation The machine tool weighs about 16.5T, see the foundation diagram Recommended quick-drying cement for secondary pouring of anchor bolts: high strength non-shrinkage grouting material 2.Preparing the incoming power cable Cable YJV 4*10mm² 3.Preparing for compressed air access Air source filtration precision 100μm Air tube outer diameter 10mm 4.Equipment oil.See "Recommended Oils and Grease Table" for details. 5.Transportation status confirmation 01.Confirm the transportation method according to the factory and surrounding road conditions 02.Meet the net transportation size of the largest component of the machine tool 03.Confirm the lifting method according to the actual height of the factory building 6.Preparation for installing spreader Steel wire rope, safe load-bearing of more than 18T |
| Warranty | The warranty period of the machine tool is 12 months from the date of shipment of the equipment. During the warranty period, if machine tool failure occurs due to product quality problems, we will be responsible for free remote technical maintenance support. The following cases are within the warranty period, but are not applicable and the user must pay all repair costs: When the machine tool is damaged due to earthquake, typhoon, flood or other disasters beyond human control. When the product is faulty, rusty or damaged due to improper operation and maintenance by the buyer. After the warranty period, the seller is responsible for ensuring the paid supply of accessories and providing maintenance technical consultation and paid maintenance. The seller charges the cost of replacing faulty parts at a preferential price and provides spare parts for the parts. |
| CNC preferable work condition | Equipment use environment requirements Maintaining a constant level of ambient temperature is an essential factor for precision machining. 1. The available ambient temperature requires 10℃～40℃. When the ambient temperature is 20℃, the humidity should be 40～75%. In order to keep the static accuracy of the machine tool within the specified range, the optimal ambient temperature requires 15℃～25℃, and the temperature difference shall not exceed ±2℃/24h. 2. Power supply voltage: 3-phase, 380V, voltage fluctuation within ±10%, power supply frequency: 50HZ. 3. If the voltage in the use area is unstable, the machine tool should be equipped with a stabilized power supply to ensure the normal operation of the machine tool. 4. The machine tool should have reliable grounding: the grounding wire is a copper wire, the wire diameter should not be less than 10mm², and the grounding resistance is less than 4 ohms. 5. In order to ensure the normal working performance of the equipment, if the compressed air of the air source does not meet the air source requirements, a set of air source purification device (dehumidification, degreasing, filtration) should be added before the machine tool intake. 6. Keep the equipment away from direct sunlight, vibration sources, heat sources, high-frequency generators, electric welders, etc. to avoid machine production failures or loss of machine accuracy. |
