Built on proven GUGAO designs and technology, the T series Drilling & Tapping Centers are high-speed, lean-style machining centers with compact footprints that make very efficient of use of valuable workshop floor space and provide the perfect combination of speed and power to reduce cycle times, which suitable for producing and machining various of parts such as sheet, plate, box, shell, mold and so on in small or medium size by small batch of multi-varieties or mass production of single.
600/400/300mm
700*400mm
300kg
Share:

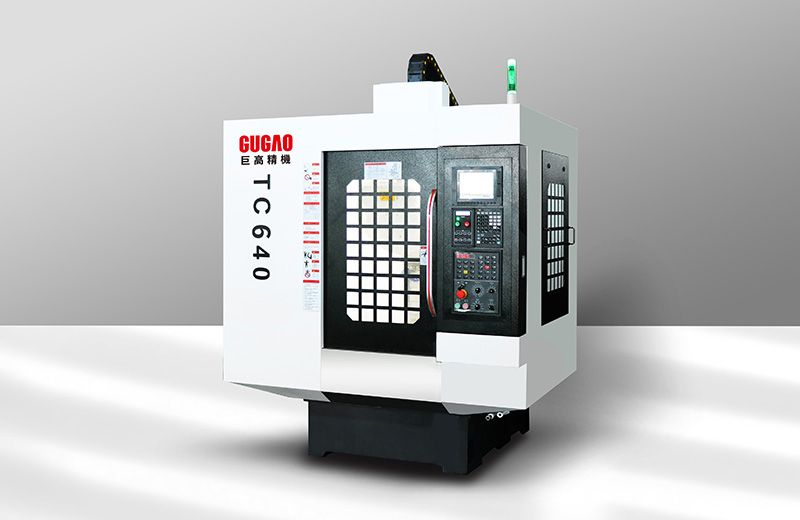

TC640 is a high-speed drilling and tapping center machine tool, which adopts mechatronics design, beautiful appearance, and can perform precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete milling, drilling, boring, expanding, reaming, countersinking, tapping and other processes.
This machine is suitable for multi-variety processing of complex parts such as medium and small boxes, plates, discs, shells, etc., and is widely used in 3C products, IT equipment, optical equipment, medical equipment and aluminum alloy products.
Whole machine: The machine tool adopts a column fixed and a cross slide moving structure. The X, Y, and Z axes adopt linear rolling guides, and the whole machine has high rigidity, high stability and high reliability. The large-flow fully enclosed protection has a beautiful appearance and is easy to operate and maintain.
Spindle box: It adopts a high-speed spindle unit, the spindle adopts BBT30 specifications, and has a central blowing function.
Tool magazine: The tool magazine adopts a clamp arm tool magazine with reliable quality and stable performance. The tool magazine adopts a clamp arm tool change, the tool magazine capacity is 21, and the tool change time is fast.
Drive: The three-axis motor and high-precision ball screw adopt direct drive to improve transmission rigidity and positioning accuracy. The three linear coordinate axes all adopt linear rolling guides, and the machine tool has small vibration when feeding at high speed and no creeping when feeding at low speed.
The quality of the finished products of all parts and components of the machine tool meets the product drawings and relevant technical requirements, and its safety standards meet the relevant provisions of GB15760-2004 ""General Technical Conditions for Safety Protection of Metal Cutting Machine Tools"", and its accuracy standards meet the relevant provisions of GB/T17421-2000 ""General Rules for Machine Tool Inspection"" and JB/T8771-1998 ""Inspection Conditions for Machining Centers"".
| Item/Content | Parameter |
| Triaxial travel | 600/400/300 (mm) |
| Distance from spindle end face to center of table | 150-450 (mm) |
| Table area | 700*400 (mm) |
| Maximum bearing capacity | 300 (kg) |
| T-slot (slot number * slot width * spacing) | 3*14*120 (mm) |
| Maximum spindle speed | 20000 (rpm) |
| Spindle diameter/inner taper | ⌀100/BBT30 |
| Spindle motor power | 3.7/5.5(kW) |
| Three axis fast moving speed | 48/48/48 (m/min) |
| Triaxial feed speed (X/Y/Z) | 10/10/10 (m/min) |
| Tool storage capacity | 21 |
| Maximum tool diameter/length/weight | ⌀60mm/200mm/3kg |
| Maximum tool diameter (full tool/adjacent empty tool) | 60/80 (mm) |
| Tool exchange time | 1.3 (s) |
| Positioning accuracy (X/Y/Z) | 0.008 (mm) |
| Repeated positioning accuracy (X/Y/Z) | 0.005 (mm) |
| Air source/pressure | 280L/min 6-8bar |
| Linear rolling guide Specifications (X/Y/Z) | Ball 30/30/35 (mm) |
| Ball screw Specifications (X/Y/Z) | 32/32/32 (mm) |
| Servo motor specification | 9/9/22.5 (Nm) |
| Total electrical capacity | 15 (KVA) |
| Machine profile dimensions | 1880*2600*2700 (mm) |
| Machine weight | 3100 (kg) |
| Main configuration of machine tool | 1.FANUC 0i MF（5 pack） CNC 1 2.Hand held operation unit 1 3.Clamp-arm tool magazine 1 21T 4.Automatic lubrication system 1 5.Three-color light 1 6.Air curtain protection 1 7.Spindle air blowing device 1 8.Working light 1 9.Relevant accessories 1 10.Set of standard technical documents 1 |
| Random attachment | 1.Airgun (including tubes and connectors) H-606-1(including pipe 8*5-4m, connector) 1 set 2.CF card(2G)，CF card cover， card reader General 1 set 3.toolbox Bomei 1 pcs 4.Phillips screwdriver 6*150 1 pcs 5.Slotted screwdriver 6*150 1 pcs 6.Allen wrench 1.5-10MM 1 set 7.Hanging rings M24 4 pcs 8.Plug M24 2 Pcs 9.External power cable RVV4*6mm²*5000 1 Pcs |
| Machine tool main parts brand | 1.CNC System FANUC JAPAN 2.Tool Magazine POJU TAIWAN 3.Spindle HAOZHI/AIBIG/DEJO China 4.Ball Screw HIWIN/PMI TAIWAN/TAIWAN 5.Linear Guide HIWIN/PMI TAIWAN/TAIWAN 6.Screw Bearing NSK/NACHI JAPAN/GERMANY 7.Lubricating oil pump BAOTN CHINA 8.Main pneumatic components SMC/AIRTAC JAPAN/TAIWAN 9.Main electrical components schneider/omron FRANCE/JAPAN |
| Equipment customer security adjustment preparation table | 1.Foundation confirmation 3.1T，The machine tool weighs about 3T, see the foundation diagram：Recommended quick-drying cement for secondary pouring of anchor bolts: high strength non-shrinkage grouting material 2.Preparing the incoming power cable Cable YJV 4*10mm² 3.Preparing for compressed air access 100μm 10mm Air source filtration precision 100μm Air tube outer diameter 10mm 4.Equipment oil See Recommended Oils and Grease Table for details. 5.Transportation status confirmation 01.Confirm the transportation method according to the factory and surrounding road conditions 02.Meet the net transportation size of the largest component of the machine tool 03.Confirm the lifting method according to the actual height of the factory building 6. Preparation for installing spreader ,4.5T Steel wire rope, safe load-bearing of more than 4.5T |
| Keep under warranty | The warranty period of the machine tool is 12 months from the date of shipment of the equipment. During the warranty period, if machine tool failure occurs due to product quality problems, we will be responsible for free remote technical maintenance support. The following cases are within the warranty period, but are not applicable and the user must pay all repair costs: When the machine tool is damaged due to earthquake, typhoon, flood or other disasters beyond human control. When the product is faulty, rusty or damaged due to improper operation and maintenance by the buyer. After the warranty period, the seller is responsible for ensuring the paid supply of accessories and providing maintenance technical consultation and paid maintenance. The seller charges the cost of replacing faulty parts at a preferential price and provides spare parts for the parts. |
| Working conditions of CNC machine tools | Equipment use environment requirements Maintaining a constant level of ambient temperature is an essential factor for precision machining. 1. The available ambient temperature requires 10℃～40℃. When the ambient temperature is 20℃, the humidity should be 40～75%. In order to keep the static accuracy of the machine tool within the specified range, the optimal ambient temperature requires 15℃～25℃, and the temperature difference shall not exceed ±2℃/24h. 2. Power supply voltage: 3-phase, 380V, voltage fluctuation within ±10%, power supply frequency: 50HZ. 3. If the voltage in the use area is unstable, the machine tool should be equipped with a stabilized power supply to ensure the normal operation of the machine tool. 4. The machine tool should have reliable grounding: the grounding wire is a copper wire, the wire diameter should not be less than 10mm², and the grounding resistance is less than 4 ohms. 5. In order to ensure the normal working performance of the equipment, if the compressed air of the air source does not meet the air source requirements, a set of air source purification device (dehumidification, degreasing, filtration) should be added before the machine tool intake. 6. Keep the equipment away from direct sunlight, vibration sources, heat sources, high-frequency generators, electric welders, etc. to avoid machine production failures or loss of machine accuracy. |
