Processing of steering knuckles for new energy vehicles

Jugao Precision Universal Machine Tool, Comprehensively Embracing the Manufacturing of New Energy Vehicles - "Processing of Steering Gear Connectors"

We have already introduced the process disassembly and equipment selection plan for the processing of the "three electrical systems" related components of new energy vehicles in the previous articles. Friends who haven't had time to read it yet, please click on the "Related Reading" link at the end of the article to view the corresponding content. It was supposed that the "series on the processing of new energy vehicle parts" ended here, but unexpectedly, these articles caused a warm response on the official account. It seems that everyone is very interested in the processing of components for domestic new energy vehicles, which are currently undergoing explosive development. Some customers are even consulting about equipment, hoping to seize the opportunity to enter this market and find new opportunities. Since everyone is so enthusiastic about the content of this series, in the coming period, we will continue to introduce to you the processing of other components of new energy vehicles except for the "three electric". How does the Taiwan Group process disassembly and equipment selection? We know that a new energy vehicle not only has "three electric systems", but also multiple systems such as steering system, braking system, suspension system, etc. Today we will introduce to you again the processing technology and equipment to be used for the "steering gear connector" in the steering system of new energy vehicles.

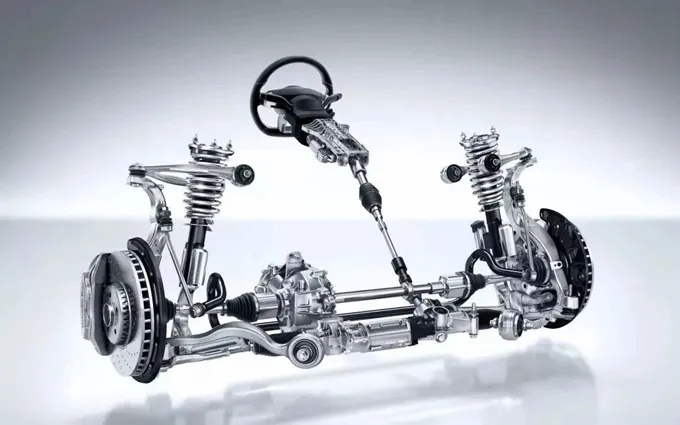

Automotive steering system

Processing of steering gear connectors

The steering gear connector of new energy vehicles is a very sturdy workpiece, usually machined from 42CrMo forgings, and its hardness standard needs to reach HRC53-58. 42CrMo forgings belong to ultra-high strength steel, which has the characteristics of high strength, high toughness, good hardenability, and no obvious tempering brittleness. Moreover, after quenching and tempering treatment, they have high fatigue strength and resistance to multiple impacts.

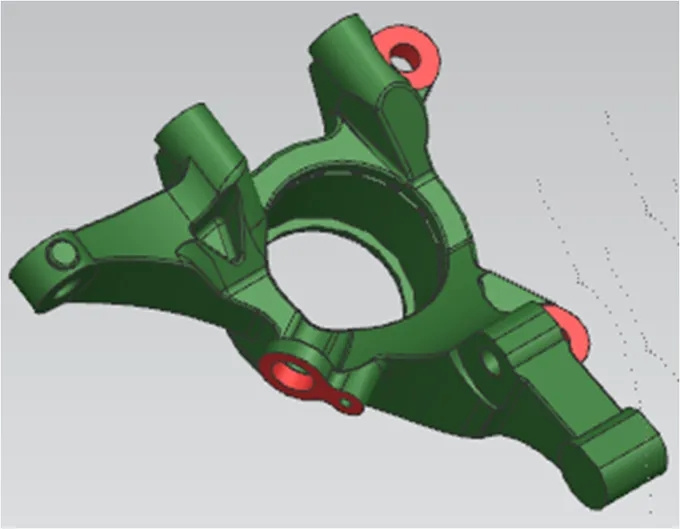

Car steering gear connector

It is precisely because of its material characteristics that it has particularly high requirements for the rigidity and accuracy of the processing equipment during processing, and the consumption and wear of the cutting tools during the processing are also fast. In addition, the machining difficulty of this workpiece lies not only in its hardness, but also in its precision. The difficulty in machining accuracy of the entire workpiece is concentrated on the two bearing necks. The coaxiality of the bearing necks should be less than 0.015, the verticality should be less than 0.02, and the roundness of the pin hole should be less than 0.01, in order to qualify the workpiece.

The Jugao HC2540L CNC lathe has a fast moving speed of up to 24/30m/min for the X/Y axis and a repeated positioning accuracy of 0.005mm for the X/Y axis. When machining hard workpiece reference surfaces, it not only has high speed and efficiency, but also has high precision and smoothness, ensuring that the workpiece surface is bright, burr free, and scratch free.

The Jugao VL1270 vertical lathe has an X/Y/Z three-axis stroke of 1200/700/670mm, which has a large processing range and is sufficient to accommodate the processing of larger workpieces. In addition, its X-axis, Y-axis, and Z-axis fast moving speeds can reach 30m/min, positioning accuracy (X/Y/Z axis) can reach 0.01mm, and repeated positioning accuracy (X/Y/Z axis) can reach as high as 0.006mm. Both in terms of accuracy and speed, it can meet the efficient and high-precision processing needs of this type of workpiece.

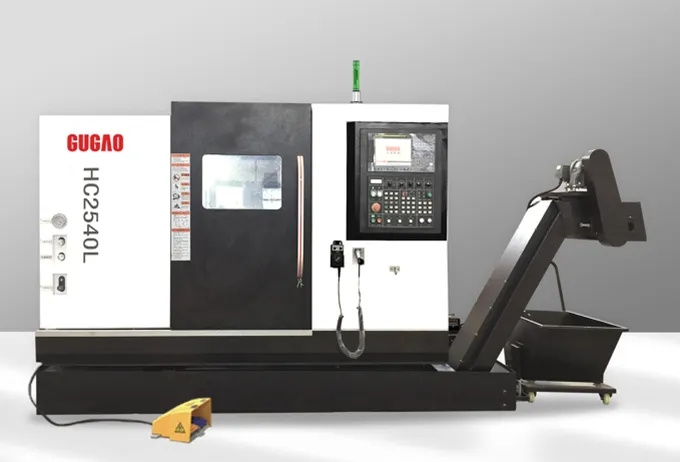

Jugao Lijia&VL1270 CNC lathe HC2540L

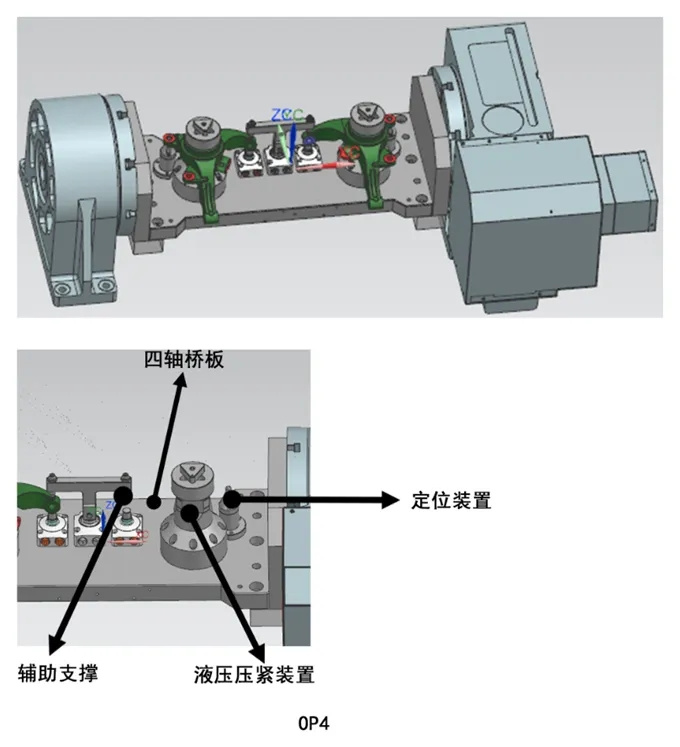

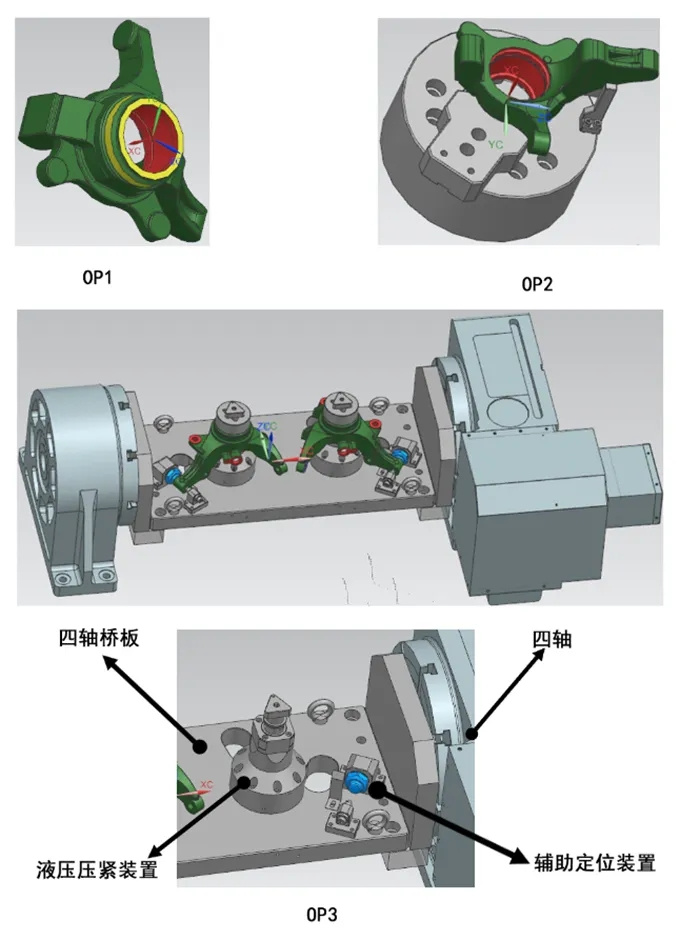

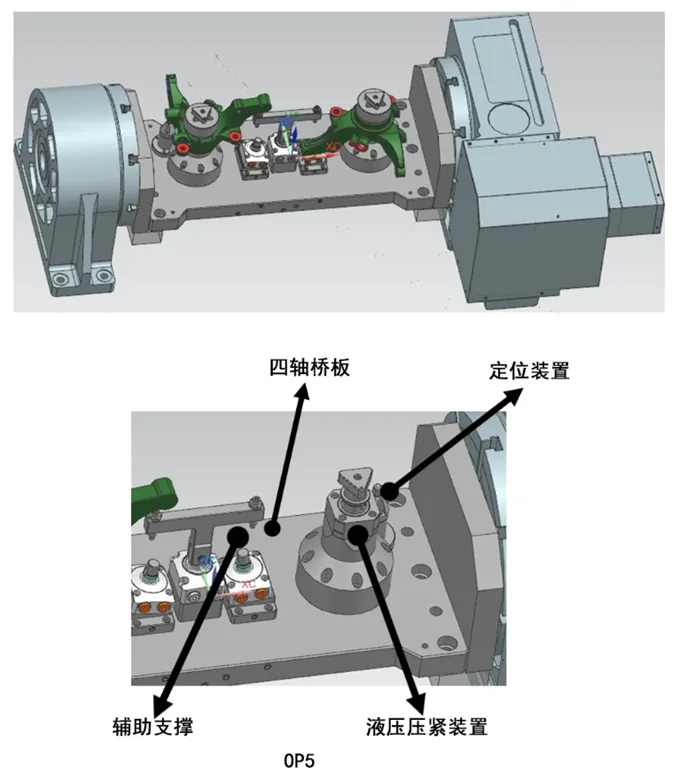

Schematic diagram of the machining process and fixture for the steering gear connector

In short, the steering gear connector of new energy vehicles, due to its high rigidity and high-precision workpiece characteristics, requires the processing equipment itself to have excellent processing quality. The two devices recommended by Jugao above can easily handle the efficient processing of such workpieces. Customers who are interested in engaging in this type of workpiece processing can consider our recommended solution.

Of course, the braking system of a car is more important for a car. In the first half of this year, the "brake door" incident of a well-known new energy vehicle brand caused a great uproar in China, which demonstrates the importance of the brake system for a car and the attention of consumers to the brake system of a car. So, what components are included in the braking system of a new energy vehicle? How are these components processed? We will unveil the next "New Energy Vehicle Brake System Processing" for everyone.
