GUGAO industry-leading V Series VMCs are the best-value, high-performance machine tools available today classified into 3 categories of roll-guide machines, slide-guide machines and mold machines that can meet any workshop's requirements with various of sizes and features, which suitable for producing and machining various of parts such as sheet, plate, box, shell, mold and so on in small or medium size by small batch of multi-varieties or mass production of single.
1400/750/700mm
1500*700mm
1400kg
Share:

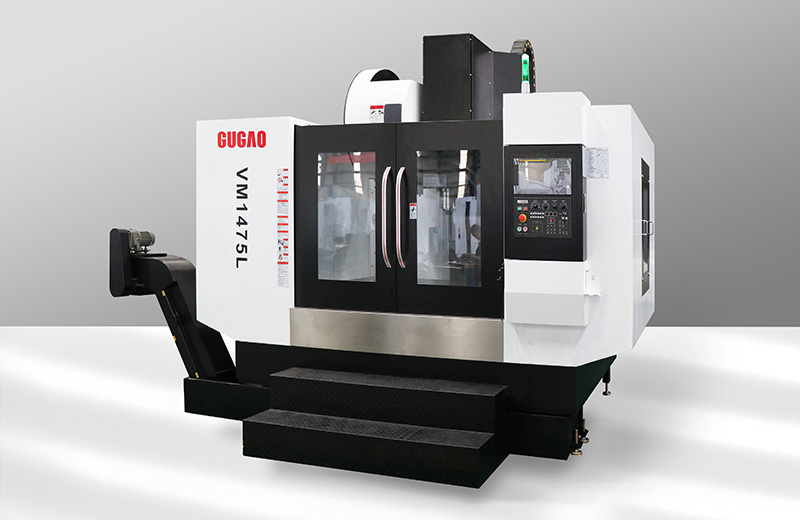

VM1475L is a fixed column type vertical machining center machine tool, which adopts mechatronics design, beautiful shape, and can perform precision cutting. After the workpiece is clamped once, the machine tool can automatically and continuously complete milling, drilling, boring, expanding, reaming, countersinking, tapping and other processes.
This machine is suitable for multi-variety processing of complex parts such as medium and small boxes, plates, discs, shells, etc., and is widely used in automotive parts, valves, engineering machinery, IT equipment, optical equipment, medical equipment and aerospace industries.
Complete machine: The machine tool adopts a column fixed and a cross slide moving structure. The X, Y, and Z axes adopt linear rolling guides, and the whole machine has high rigidity, high stability and high reliability. The large flow fully enclosed protection has beautiful shape and is easy to operate and maintain.
Spindle box: It adopts a high-speed spindle unit, the spindle taper hole BT50 specification, and has a center blowing function.
Tool magazine: The tool magazine adopts a disc-type tool magazine with reliable quality and stable performance.
Drive: The three-axis motor and high-precision ball screw are directly connected and driven. The ball screw is pre-stretched and installed to improve the transmission rigidity and positioning accuracy. The three linear coordinate axes all use linear rolling guides. The machine tool has small vibration when feeding at high speed and no creeping when feeding at low speed.
The quality of the finished products of all parts and components of the machine tool meets the product drawings and relevant technical requirements. Its safety standards meet the relevant provisions of GB15760-2004 ""General Technical Conditions for Safety Protection of Metal Cutting Machine Tools"", and its accuracy standards meet the relevant provisions of GB/T17421-2000 ""General Rules for Machine Tool Inspection"" and JB/T8771-1998 ""Inspection Conditions for Machining Centers"".
Item/Content | Parameter |
Three axis travel | 1400/750/700 (mm) |
Distance from spindle end face to worktable center | 120-820 (mm) |
Worktable Size | 1500*700 (mm) |
Maximum load-bearing capacity | 1400 (kg) |
T-shaped slot | 5*18*150 (mm) |
Max spindle speed | 8000 (rpm) |
Spindle diameter Spindle bore taper | ⌀155/BT50 |
Motor power | 15/18.5(kW) |
Three axis fast moving speed | 30/30/24 (m/min) |
Three axis feed speed | 10/10/10 (m/min) |
Magazine capacity | 24 |
Max tool diameter/length/weight | ⌀112mm/350mm/15kg |
Maximum tool diameter (full tool/adjacent empty tool) | 112/200 (mm) |
Tool exchange time (T-T) | 3 (s) |
Positioning accuracy | 0.012 (mm) |
repositioning accuracy | 0.008 (mm) |
Air source/pressure | 280L/min 6-8bar |
Total electrical capacity | 35 (KVA) |
Tank volume | 330 (L) |
Machine size | 3600*3600*3400 (mm) |
estimated weight | 8500 (kg) |
Main configuration of machine tool | 1 .FANUC 0i MF(5) CNC 2 .Hand held operation unit 3 .Disc-type tool magazine 24T 4 .Automatic lubrication system 5 .Spindle air blowing device 6 .Air curtain protection 7 .Relevant accessories 8 .set of standard technical documents |
Relevant accessories | 1 .High pressure air gun H-606-1(including tube 8*5-4m, connector) 1 set 2 .CF card(2G),CF card cover,card reader General 1 set 3 .toolbox . Bomei 1 pcs 4 .Phillips screwdriver .6*150 1 pcs 5 .Slotted screwdriver .6*150 1 pcs 6 .Allen wrench 1.5-10MM 1 set 7 .Hanging rings M24 4 pcs 8 .Network communication line .24AWG*4P grey*5000 .1 pcs 9 .External power cable .RVV4*6mm²*5000 1 pcs |
Brands of the main parts | 1.CNC System FANUC JAPAN 2.Tool Magazine OKADA/DES/POJU TAIWAN 3.Spindle ABIG/Way long/KENTURN China/Taiwan TAIWAN 4.Ball Screw HIWIN/PMI TAIWAN 5.Linear Guide HIWIN/PMI TAIWAN 6.Screw Bearing NSK/NACHI JAPAN 7.Lubricating oil pump.BAOTN/HERG. CHINA 8.Main pneumatic components SMC/AIRTAC JAPAN/TAIWAN 9.Main electrical components Schneider/Omron FRANCE/JAPAN Note: The manufacturer reserves the right to replace products with equivalent brands |
Equipment Customer Installation Preparation Form | 1.Foundation confirmation The machine tool weighs about 8.5T, see the foundation diagram Recommended quick-drying cement for secondary pouring of anchor bolts: high strength non-shrinkage grouting material 2.Preparing the incoming power cable Cable YJV 4*10mm² 3.Preparing for compressed air access Air source filtration precision 100μm Air tube outer diameter 10mm 4.Equipment oil Equipment oil.See "Recommended Oils and Grease Table" for details. 5.Transportation status confirmation 1.Confirm the transportation method according to the factory and surrounding road conditions 2.Meet the net transportation size of the largest component of the machine tool 3.Confirm the lifting method according to the actual height of the factory building 6.Preparation for installing spreader Steel wire rope, safe load-bearing of more than 11T |
Warranty | The warranty period of the machine tool is 12 months from the date of shipment of the equipment. During the warranty period, if machine tool failure occurs due to product quality problems, we will be responsible for free remote technical maintenance support. The following cases are within the warranty period, but are not applicable and the user must pay all repair costs: 1.When the machine tool is damaged due to earthquake, typhoon, flood or other disasters beyond human control. 2.When the product is faulty, rusty or damaged due to improper operation and maintenance by the buyer. After the warranty period, the seller is responsible for ensuring the paid supply of accessories and providing maintenance technical consultation and paid maintenance. The seller charges the cost of replacing faulty parts at a preferential price and provides spare parts for the parts. |
CNC preferable work condition | Equipment use environment requirements Maintaining a constant level of ambient temperature is an essential factor for precision machining. 1. The available ambient temperature requires 10℃~40℃. When the ambient temperature is 20℃, the humidity should be 40~75%. In order to keep the static accuracy of the machine tool within the specified range, the optimal ambient temperature requires 15℃~25℃, and the temperature difference shall not exceed ±2℃/24h. 2. Power supply voltage: 3-phase, 380V, voltage fluctuation within ±10%, power supply frequency: 50HZ. 3. If the voltage in the use area is unstable, the machine tool should be equipped with a stabilized power supply to ensure the normal operation of the machine tool. 4. The machine tool should have reliable grounding: the grounding wire is a copper wire, the wire diameter should not be less than 10mm², and the grounding resistance is less than 4 ohms. 5. In order to ensure the normal working performance of the equipment, if the compressed air of the air source does not meet the air source requirements, a set of air source purification device (dehumidification, degreasing, filtration) should be added before the machine tool intake. 6. Keep the equipment away from direct sunlight, vibration sources, heat sources, high-frequency generators, electric welders, etc. to avoid machine production failures or loss of machine accuracy. |
