GUGAO GM Series large-platform Gantry Machining Centers can be classified into 2 categories of roller-guide machines and slide-guide machines with the power to handle big jobs such as rough or fine finish of large hard ferrous and non-ferrous metal parts, as well as the speed to cut small parts of plastic and other light materials by the thousand.
3000/2400/1000mm
3100*1900mm
10500kg
Share:

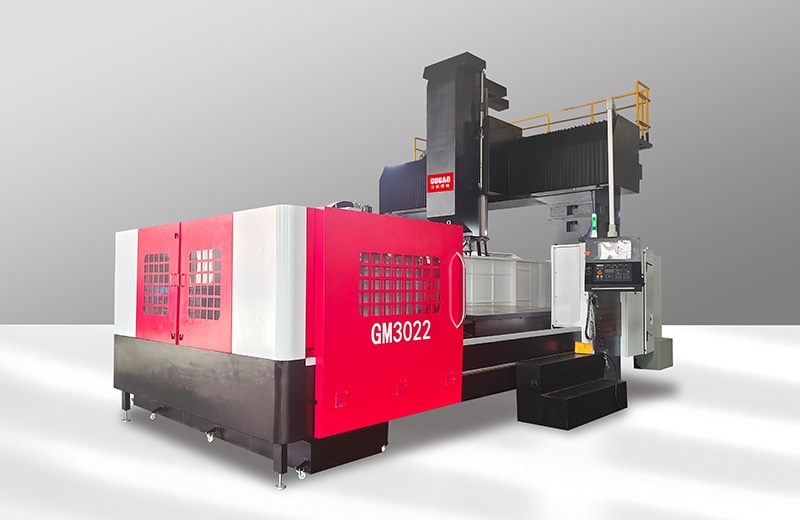

GM3022 is a fixed beam and fixed column gantry machining center machine tool. It is developed based on the most popular, advanced and flexible machine tool design concept in the world. It is suitable for machining various large workpieces in industries such as aerospace, shipbuilding, power generation, military industry, heavy machinery, locomotives, machine tools, textile machinery, printing machinery, and automobile cover molds.
The high-strength, high-rigidity design and large-flow chip removal channel structure of this machine tool have the characteristics of high precision, high efficiency, flexibility, and environmental protection. Its performance indicators and precision indicators meet relevant national standards.
The whole machine adopts a moving table gantry structure. The bed is fixed, and the workbench moves in the X direction on the bed; the ram moves in the Z direction on the slide; the slide together with the ram moves in the Y direction on the gantry beam; the X and Y axes use heavy-load linear rails, and the Z axis is a plastic-coated hard rail. The spindle assembly is placed at the lower end of the ram; the whole machine has a reasonable layout, beautiful appearance, and easy operation.
Spindle: It adopts a high-speed spindle unit, and the spindle adopts BT50 specifications.
Tool magazine: The tool magazine adopts a disc-type tool magazine with reliable quality and stable performance. (Optional)
Drive: The three-axis motor and high-precision ball screw adopt direct drive. The ball screw is pre-stretched and installed to improve the transmission rigidity and positioning accuracy.
The quality of the finished products of all machine tool parts and components is in line with the product drawings and relevant technical requirements. Its safety standards comply with the relevant provisions of GB15760-2004 ""General Technical Conditions for Safety Protection of Metal Cutting Machine Tools"", and its accuracy standards comply with the relevant provisions of GB/T17421-2000 ""General Rules for Machine Tool Inspection"" and GB/T19362.1-2003 ""Gantry Milling Machine Inspection Conditions"".
| Item/Content | Parameter |
| Triaxial travel | 3000/2400/1000 (mm) |
| Distance from spindle end face to center of table | 200-1200 (mm) |
| Distance between two columns | 2150 (mm) |
| Table area | 3100*1900 (mm) |
| Maximum bearing capacity | 10500 (kg) |
| T-slot (slot number * slot width * spacing) | 9*22*200 (mm) |
| Maximum spindle speed | 6000 (rpm) |
| Spindle diameter/inner taper | ⌀190/BT50 |
| Spindle motor power | 22/26 (kW) |
| Three axis fast moving speed | 12/12/12 (m/min) |
| Triaxial feed speed (X/Y/Z) | 10/10/10 (m/min) |
| Cutting feed speed range | None |
| Tool storage capacity | 24 |
| Maximum tool diameter/length/weight | ⌀112mm/350mm/15kg |
| Maximum tool diameter (full tool/adjacent empty tool) | 112/200 (mm) |
| Tool exchange time | 3.0 (s) |
| Positioning accuracy (X/Y/Z) | 0.025/0.025/0.015 (mm) |
| Repeated positioning accuracy (X/Y/Z) | 0.012/0.012/0.008 (mm) |
| Air source/pressure | 280L/min 6-8bar |
| Linear rolling guide Specifications (X/Y/Z) | Roller 55/55 (mm) |
| Ball screw Specifications (X/Y/Z) | 63/63/50 (mm) |
| Total electrical capacity | 45 (KVA) |
| Tank volume | 530 (L) |
| Machine profile dimensions | 8750*6400*5000 (mm) |
| Machine weight | 29000 (kg) |
| Main configuration of machine tool | 1.FANUC 0i-MF（1 pack）CNC 2.Hand held operation unit 3.Disc-type tool magazine 4.Automatic lubrication system 5.Spindle air blowing device 6. Air curtain protection 7.Working light 8.Three-color light 9.Relevant accessories 10.set of standard technical documents |
| Random attachment | 1.CF card(2G)，CF card cover,card reader General 1 set 2.toolbox Bomei 1 pcs 3.Phillips screwdriver 6×150 1 pcs 4.Slotted screwdriver 6×150 1 pcs 5.Allen wrench 1.5-10MM 1 set |
| Machine tool main parts brand | 1.CNC System FANUC JAPAN 2.Tool Magazine OKADA/DES/POJU TAIWAN/CHINA 3.Spindle AIBIG/KENTURN CHINA/TAIWAN 4.Ball Screw HIWIN/PMI TAIWAN 5.Linear Guide HIWIN/PMI TAIWAN 6.Screw Bearing NSK/NACHI JAPAN 7.Lubricating oil pump BAOTN CHINA 8.Main pneumatic components SMC/AIRTAC JAPAN/TAIWAN 9.Main electrical components Schneider/Omron FRANCE/JAPAN Note: The manufacturer reserves the right to replace products with equivalent brands |
| Equipment customer security adjustment preparation table | 1.Foundation confirmation The machine tool weighs about 18T, see the foundation diagra Recommended quick-drying cement for secondary pouring of anchor bolts: high strength non-shrinkage grouting material 2.Preparing the incoming power cable Cable YJV 4*16mm² 3.Preparing for compressed air access Air source filtration precision 100μm Air tube outer diameter 10mm 4.Equipment oil.See "Recommended Oils and Grease Table" for details. 5.Transportation status confirmation 01.Confirm the transportation method according to the factory and surrounding road conditions 02.Meet the net transportation size of the largest component of the machine tool 03.Confirm the lifting method according to the actual height of the factory building 6.Preparation for installing spreader Steel wire rope, safe load-bearing of more than 20T |
| Keep under warranty | The warranty period of the machine tool is 12 months from the date of shipment of the equipment. During the warranty period, if machine tool failure occurs due to product quality problems, we will be responsible for free remote technical maintenance support. The following cases are within the warranty period, but are not applicable and the user must pay all repair costs: When the machine tool is damaged due to earthquake, typhoon, flood or other disasters beyond human control. When the product is faulty, rusty or damaged due to improper operation and maintenance by the buyer. After the warranty period, the seller is responsible for ensuring the paid supply of accessories and providing maintenance technical consultation and paid maintenance. The seller charges the cost of replacing faulty parts at a preferential price and provides spare parts for the parts. |
| Working conditions of CNC machine tools | Equipment use environment requirements Maintaining a constant level of ambient temperature is an essential factor for precision machining. 1. The available ambient temperature requires 10℃～40℃. When the ambient temperature is 20℃, the humidity should be 40～75%. In order to keep the static accuracy of the machine tool within the specified range, the optimal ambient temperature requires 15℃～25℃, and the temperature difference shall not exceed ±2℃/24h. 2. Power supply voltage: 3-phase, 380V, voltage fluctuation within ±10%, power supply frequency: 50HZ. 3. If the voltage in the use area is unstable, the machine tool should be equipped with a stabilized power supply to ensure the normal operation of the machine tool. 4. The machine tool should have reliable grounding: the grounding wire is a copper wire, the wire diameter should not be less than 10mm², and the grounding resistance is less than 4 ohms. 5. In order to ensure the normal working performance of the equipment, if the compressed air of the air source does not meet the air source requirements, a set of air source purification device (dehumidification, degreasing, filtration) should be added before the machine tool intake. 6. Keep the equipment away from direct sunlight, vibration sources, heat sources, high-frequency generators, electric welders, etc. to avoid machine production failures or loss of machine accuracy. |
